Leica Rugby 680 Dual Grade Laser Level

Features and Benefits

  • Range up to 2,600 feet with a receiver
  • Accuracy 1/16-inch at 100 feet
  • Self-leveling within ±5 degrees
  • Dual-axis slope ±8 degrees
  • Smart Slope disturbance alert
  • Battery life up to 60 hours
  • IP67 dustproof and water immersible
  • Thread 5/8-11

Download Datasheets

Download Brochures

This product is currently out of stock and unavailable.

Product Description

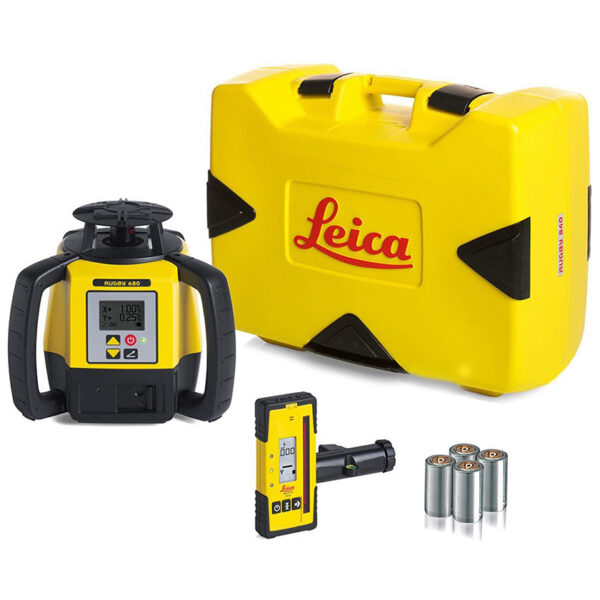

Overview for Leica 6011160 Rugby 680 Dual Grade Laser Level

The Leica Rugby 680 Dual Grade Laser Level is a durable self-leveling laser with semi-automatic grade capability in both axes. Construction professionals can dial-in grade up to ±8 percent. This laser level has an accuracy of 1/16 inches at 100 feet and up to 2,600 feet range when used with a laser receiver.

Self-leveling within ±5 degrees, the Leica Rugby 680 is great for indoor and outdoor construction projects such as concrete, formwork, driveways, and any project involving horizontal leveling or dual slope. The laser level allows you to dial in your slope but requires manual adjustment should surveyors need to change the percentage of the grade. The Rugby 680 laser level comes with Leica’s Smart Scope technology that continuously monitors and alerts you when there are disturbances to the grade laser, whether bumps or temperature changes.

With an IP67 rating, easy to grip overmold protection handles, one-touch operation, and clear LED indicators, this fully automatic self-leveling laser is user-friendly. With the optional alkaline battery pack, the Rugby 680 can last up to 60 hours. It can also be charged with Leica’s advanced solar charger. This dial-in grade dual-slope laser comes with a 5/8-11 tripod thread, 5-year warranty, and a hard shell stackable carrying case.

Configuration Options

The Leica Rugby 680 Grade Laser Level is available in different packages to suit your needs. Please select your preference from the menu above.

  • 790381: Leica Rugby 680 Dual Grade Laser Level Only
  • 6011160: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 120 and Alkaline Battery Pack
  • 6011159: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 120 and Li-Ion Battery Pack and Charger
  • 6006007: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 140 and Alkaline Battery Pack
  • 6006010: Leica Rugby 680 Dual Grade Laser Level with Rod-Eye 160 and Li-ion Battery Pack

Laser Receiver


Rod Eye 120



Rod Eye 140



Rod Eye 160


Working Diameter

up to 2,900 ft

up to 4,400 ft

up to 4,430 feet


Detection Window

2.75″ (70 mm)

4.5″ (120 mm)

5″ (127mm)


Detection Accuracies
Super Fine

N/A

N/A

±0.5 mm


Fine

±1.0 mm

±1.0 mm

±1.0 mm


Medium

±2.0 mm

±2.0 mm

±2.0 mm


Coarse

±3.0 mm

±3.0 mm

±3.0 mm

Very Coarse

N/A

N/A

±5.0 mm

Brand

Spectra Precise
