ULTRA Precision Utility Tracing System Kit
Features and Benefits
- Frequency range: 50 Hz to 200 kHz
- 100 user-programmable custom frequencies
- Ambient Interference Measurement
- Variable antenna configuration
- Special direction enabled signal
- Optional Bluetooth connectivity
- Large backlit LCD display with compass
- Bluetooth connectivity
Download Datasheet
Download Brochure
Product Description

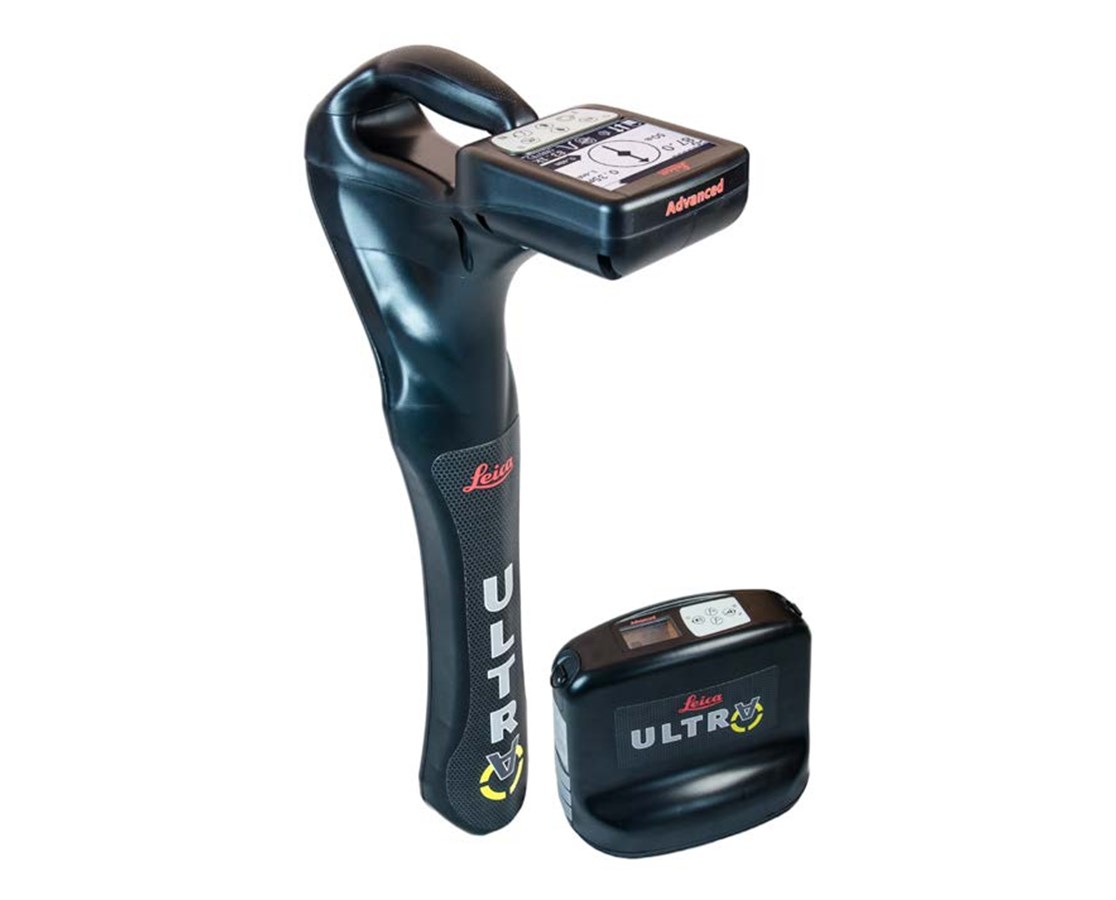

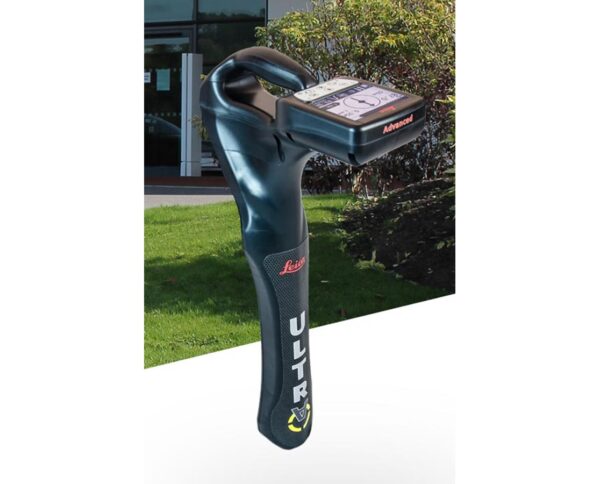

Overview for Leica ULTRA Precision Utility Tracing System Kit
The Leica ULTRA Precision Utility Tracing System is the best precision locating system for detecting utilities buried underground. With over 100 user-programmable custom frequencies, the operator can optimize the instrument to overcome the most challenging and complex site conditions. It features a frequency range from 50 hertz to 200 kilohertz and a depth detection of up to 20 feet.
Featuring the Ambient Interference Measurements (AIM) feature, this tracing system analyzes the surrounding area for noise and recommends the best frequencies for accurate utility tracing. Also, it includes a variable antenna configuration for best job site optimization. Plus, it comes with a Bluetooth connectivity and a special direction enabled signal.
This Ultra tracing system has an IP65 rating which protects the unit from dust and water jets. It includes a large backlit LCD display with a compass that provides a clear and improved location and utility detection. As an extra feature, it uses two D-cell alkaline batteries that power the device up to 30 hours of continuous use.
Configuration Options
The Leica ULTRA Precision Utility Tracing System has three available kits. Please choose from the drop-down menu above.
- 6011143: 5-Watt Transmitter and Standard Locator Kit
- 6011141: 12-Watt Transmitter and Advanced Locator Kit
- 6011142: 12-Watt Transmitter and Standard Locator Kit
Item # |
Transmitter Wattage |
Locator Type |
Ambient Interference Measurements (AIM) |
Offset Measuring |
Bluetooth |
![]() |
5 |
Standard |
No |
No |
No |
![]() |
12 |
Advanced |
Yes |
Yes |
Yes |
![]() |
12 |
Standard |
No |
No |
No |
Features for Leica ULTRA Precision Utility Tracing System Kit
- Choice of 3 kits
- Frequency range from 50 Hz to 200 kHz
- Up to 100 user-programmable custom frequencies
- Ambient Interference Measurement
- Variable antenna configuration
- Special direction enabled signal
- Bluetooth connectivity
- Large backlit LCD display with compass
- IP65 dustproof and water resistant
- Up to 30 hours with 2 D-cell alkaline batteries
Specifications for Leica ULTRA Precision Utility Tracing System Kit
General |
|
Weight | 4.8 lbs (2.2 kg) Locator; 7.7 lbs (3.5 kg) Transmitter |
Warranty | 1-year |
Depth Detection | Up to 20 ft. (6.1 m) |
Protection Class | IP65 dustproof and water jet resistant |
Operating Temperature | -4 to 122 °F (-20 to 50°C) |
Sensitivity | N/A |
Battery/Power |
|
Battery Life | Locator: up to 70 hrs intermittent use, Transmitter: up to 100 hrs |
Low Battery Alert | Yes |
Power Source | Locator: 2 D-cell; Transmitter: 10 D-cell |
Wireless Capability |
|
Bluetooth | With Advanced package |
Memory | N/A |
Data Transfer | Yes |
Features |
|
Display | LCD with backlight |
Audio Alert | Yes |
Visual Alert | Yes |
Sleep Mode/Auto Shut Off | User-defined |
Security | N/A |
GIS Mapping | with Advanced package |
Compatibility | Leica Digimouse and Maxi Sonde |
Applications |
|
Pipe Location | Yes |
Cable Location | Yes |
Drain Location | Yes |
Frequency |
|
Power Mode | 512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz plus 100 user-selected |
Radio Mode | N/A |
Transmitter Mode | 512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz plus 100 user-selected |
Auto Mode | N/A |
Brand
Leica

Transmitter and Locator Kit | 12-Watt Transmitter and Advanced Locator Kit(6011142), 12-Watt Transmitter and Standard Locator Kit(6011141), 5-Watt Transmitter and Standard Locator Kit(6011143) |
---|
