SP20 Handheld GNSS Receiver + SP Survey Mobile Software

Features and Advantages

240 GNSS channels
Patented Z-Blade technology
Display: 5.3” gorilla glass screen
Android 6 Operating System
IP67 dustproof and water immersible
Software: Google Mobile Services & Sat-Look
Scalable solution (from m to cm)
Battery life up to 8 hours

Product Description

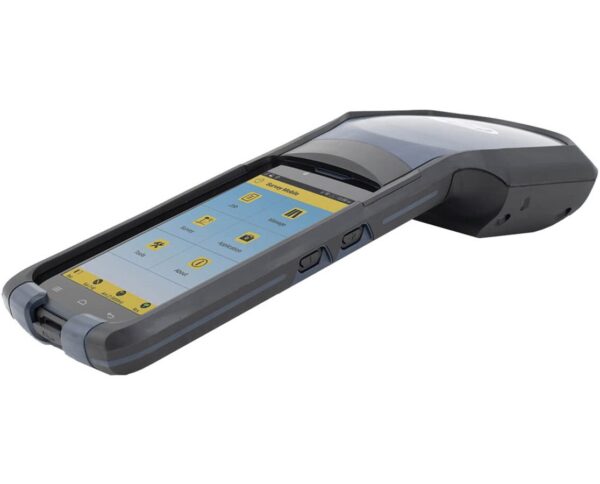

Overview for Spectra Geospatial 114819-00 SP20 Handheld GNSS Receiver

The Spectra Geospatial SP20 Handheld GNSS Receiver is a high-end portable GPS survey tool that is great for cadastral, construction, topographic surveys, GIS projects, inspection, maintenance, and survey solutions. This GNSS receiver is a camera-enabled surveying device that features a scalable solution from meter to centimeter accuracy. Featuring a patented Z-Blade technology, it uses 240 GNSS channels for optimal GNSS performance including GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS.

Easy-to-use and highly accurate, this Spectra Geospatial GNSS receiver features advanced communications such as cellular, WiFi, Bluetooth, USB and NFC (Near Field Communication). It features an ergonomic design and a 5.3-inch gorilla glass screen, which allows specific 2D logging and survey-grade 3D measurements using the monopole adaptor (included). For optimal results, the Geospatial SP20 offers real-time accuracy and post-processing accuracy.

The Spectra SP20 survey tool is powered by an Android 6 Operating System and includes two field software – Google Mobile Services and Sat-Look for a hassle-free tracking. It is supported by an IP67 rating which protects the instrument from dust and water. In addition, the SP20 GNSS receiver uses rechargeable Li-ion batteries that powers up to eight hours. Plus, it only weighs 1.87 pounds and has a size of 11.6” L x 4.7” W x 1.8” H.

Configuration Options

The Spectra Geospatial SP20 Handheld GNSS Receiver offers four position accuracies to suit your needs. Please select your preference from the menu above.

114819-00: Metric (1-Meter Standalone for GNSS and SBAS)
114819-01: Sub-Meter (30 cm Horizontal / 30 cm Vertical)
114819-02: Decimeter (7 cm Horizontal / 2 cm Vertical)
114819-03: Centimeter (Full RTK for 3D Position)

Features for Spectra SP20 Handheld GNSS Receiver

High-end portable survey tool
Camera-enabled
Scalable solution from meter to centimeter accuracy
Patented Z-Blade technology
240 GNSS channels
Communications: cellular, WiFi, Bluetooth, USB and NFC
Ergonomic design
5.3” gorilla glass screen
Android 6 Operating System
Field software: Google Mobile Services & Sat-Look
IP67 dustproof and water immersible
Rechargeable Li-ion batteries
Battery life up to 8 hours
Weight: 1.87 lbs
Size: 11.6” L x 4.7” W x 1.8” H

Specifications for Spectra Geospatial 114819-00 SP20 Handheld GNSS Receiver

General
Weight	1.87 lbs. (0.85 kg)
Warranty	1-year limited
Dimensions	11.6” L x 4.7” W x 1.8” H (29.5 x 11.9 x 4.7 cm)
Housing	N/A

Display/Keypad
Type	Backlit colored LCD
Touchscreen	Capacitive multi-touch
Size	5.3"
Keys	On-screen keyboard
Resolution	1280 x 720 pixels

Software
On-Board	Full
Upgradeable	Yes

Temperature
Operating	-4 to 140 °F (-20 to 60 °C)
Storage	-22 to 158 °F (-30 to 70 °C) without battery

Battery/Power
Battery Life	Up to 8 hours at 20 °C
Power Source	Li-ion, 6,400 mAh
Charging Time	Up to 4 hours
Voltage	N/A

Tracking Features
Satellites	GPS, GLONASS, BeiDou B1, Galileo E1, QZSS, SBAS, L-Band
Frequency	1.2 GHz
Channels	240
RTK	Yes
Antenna	External
Time to First Fix	N/A
Range	N/A

Applications
Mapping	Yes
Control Surveying	N/A
Construction Survey	Yes
Utilities	N/A
Topographic Survey	Yes
Cadastral Survey	Yes
Static Survey	N/A
Kinematic Survey	Yes
Land Seismic Exploration	N/A
Mining	N/A
Machine Guidance	N/A

Accuracy
RTK	Horizontal: 10 mm + 1 ppm; Vertical: 15 mm + 1 ppm
Static	Horizontal: 3 mm + 0.5 ppm; Vertical: 3.5 mm + 0.4 ppm
Post Processing	Horizontal: 3 mm + 0.5 ppm; Vertical: 3.5 mm + 0.4 ppm
DGPS	N/A
SBAS	Horizontal: < 50 cm; Vertical: < 85 cm
Flying RTK	N/A

Memory
On-Board	2 GB
Expandable	16 GB

Functions
Raw Data Recording	Yes
Rover Configuration	No
Base Configuration	No
Post Processing	Yes
Stake Out	Yes
Network Connection Setting	Yes
NTRIP Protocol	Direct IP
RTC Bridge	No
RTK Network Rover	Yes

Operating System
Type	Android 6.0
Processor	Qualcomm Snapdragon 410

Communication Interface
Bluetooth	4.0 dual mode
Cellular	GSM, GPRS, Edge, UMTS, WCDMA, HSPA, TDSCDMA, LTE-FDD, LTE-TDD
Wireless LAN	Wi-Fi (IEEE) 802.11 b/g/n
Internal UHF	N/A
USB	Micro B USB
Ethernet	N/A
RS232 (9-pin serial adapter)	N/A
RS422	N/A
PPS Output	N/A
NMEA 0183	N/A

Operating System Programs
GNSS Toolbox	N/A
E-mail Client	N/A
Internet Explorer	N/A
Microsoft Office Mobile	Google Office
Transcriber	N/A
ActiveSync	N/A

Advanced Features
Camera	Yes
Microphone	N/A
Speaker	N/A
Weather Protection	IP67 dustproof and water immersible
Shock Protection	3.9 feet (1.2 m)
E-Compass	Yes
Voice navigation	N/A
Floats	N/A
Hunt/Fish Calendar	N/A
Sun and Moon Information	N/A
Area Calculations	N/A

Maps and Memory
Waypoints/Favorites/Locations	N/A
Routes	N/A
Track Log	N/A
